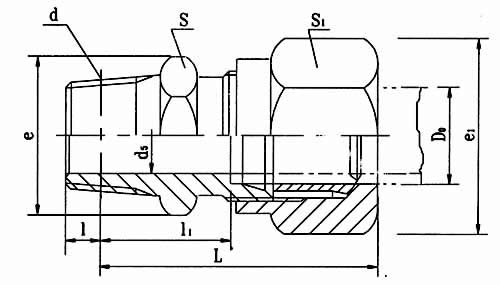

卡套式錐螺紋直通管接頭(16MPa) |
| 本標準規定了卡套式錐螺紋直通管接頭，適用于油、氣及一般腐蝕性介質的管路系統。 |
|
標記示例：
公稱壓力E級，管子外徑D0為14mm的卡套式錐螺紋直通管接頭：
管接頭E14 JB/ZQ4401-97 |
| |
